Pickup Coil Signal Generator

Designed & Developed by JAPERS Automotive.

A smart diagnostic tool that enables quick in-vehicle testing of ignition and injection systems—no engine start required. Built for precise, reliable validation across BS3/BS4/BS6 MultiPIP platforms.

₹2,600(incl tax)

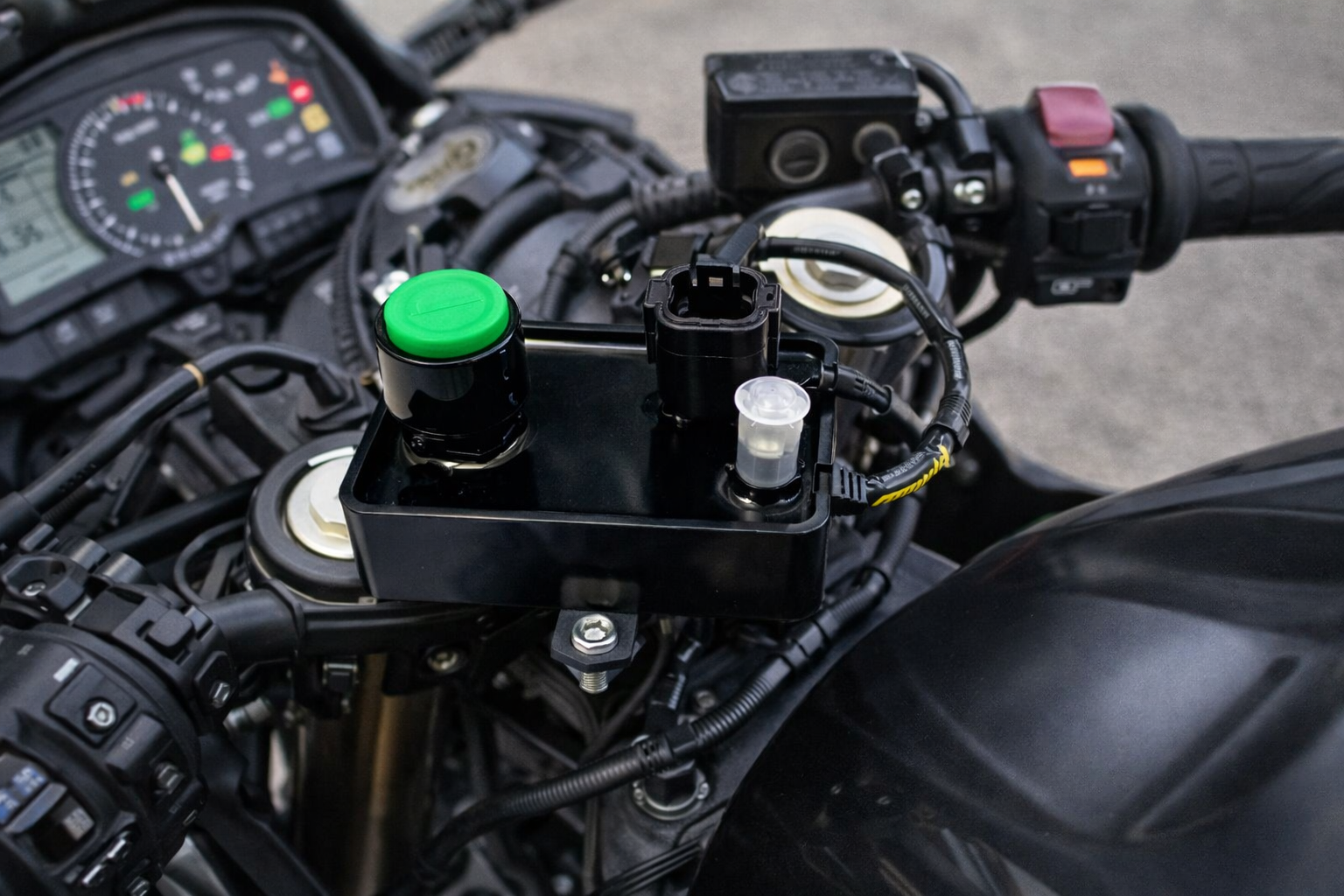

Device

Key Features and Operation

  • Battery-operated BS3 and BS4 CDI, TCI, and IU units, including the ignition coil line, can be tested directly in-vehicle without starting the engine.
  • Supports ignition coil and injector performance testing via the BS6 ECM across all MultiPIP profile vehicles.
  • Red LED ON : Unit is OFF.
  • Green LED ON: Single PIP Rotor Vehicles (all BS3 & BS4 vehicles).
  • Green LED Blinking: Dual PIP Rotor Vehicles (all Honda BS3 & BS4 vehicles).
  • Blue LED Blinking: Dual PIP Rotor Vehicles(all Bajaj BS3 & BS4 vehicles).
  • Blue LED ON: All BS6 MultiPIP Rotor Vehicles.
  • Variable RPM Operation: Testing is performed at 1500 RPM during the initial 10 seconds and at 3000 RPM during the subsequent 10 seconds.

Watch Product Demo Video

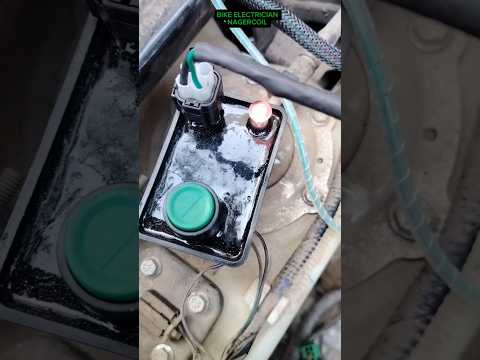

Pickup Coil Demo
Pickup Coil Demo

Complete working demonstration.

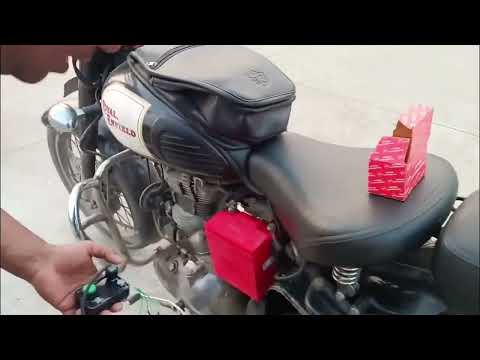

Pickup Coil Demo
Pickup Coil Demo

Complete working demonstration.

Customer Feedback Video

Customer feedback after using the Pickup Coil Signal Generator.
Customer Checking on Two Stroke Compact Auto.
karnataka Customer Feedback after using the Pickup Coil Signal Generator.
